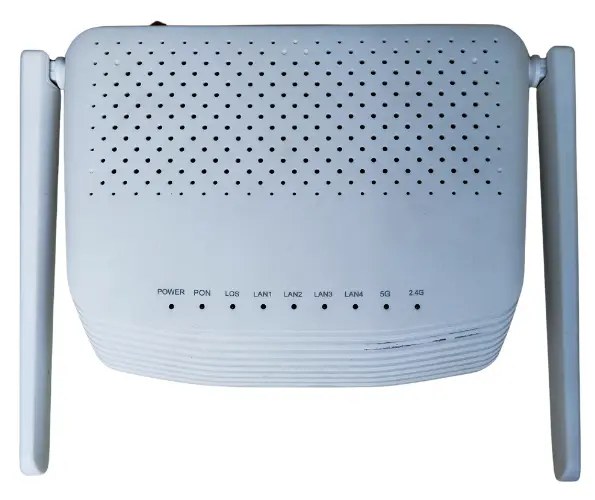

UN220G XPON Dual Band Router

বিস্তারিত

Technical Specifications

Specification	Details
Model	UN220G XPON Dual Band Router
PON Interface	1XPON (EPON/GPON auto-adapt) + 4GE LAN + 2.4G/5G WIFI
Laser Wavelength	Tx 1310nm, Rx 1490nm
Optical Interface	SC/UPC Connector
Working Condition	Temperature: 0 ℃ ~ 50 ℃, Humidity: 10% ~ 90% (non-condensing)
Storage Condition	Temperature: -30 ℃ ~ 60 ℃, Humidity: 10% ~ 90% (non-condensing)
Power Supply	DC 12V/1.5A
Energy Consumption	≤ 12 W
Wi-Fi Interface	IEEE 802.11b/g/n/ac compliant
Wi-Fi Frequency	2.400-2.4835 GHz & 5.150-5.825 GHz
Wi-Fi Speed	Up to 1200Mbps (2.4G: 300Mbps, 5G: 867Mbps)
Antennas	High-gain external antennas
Multiple SSID	Supported
Modulation Type	DSSS, CCK and OFDM
CATV Interface	Not Supported

Key Product Features

Feature Name	Description
Network Type	XPON (Supports both GPON and EPON seamlessly)
Wi-Fi Standard	Dual Band AC1200 (IEEE 802.11ac / 802.11n)
Ethernet Ports	4 x Gigabit Ethernet (GE) LAN Ports
Connector Type	SC/UPC
Firmware Language	English Firmware
Operation Mode	Supports both Routing and Bridge functions
OLT Compatibility	Highly compatible with mainstream OLTs (Huawei, ZTE, BDCOM, V-SOL)

Quick Highlights:

   •2-in-1 Combo Device: Functions as both a powerful XPON (EPON/GPON) ONU and a Dual-Band Router, eliminating the need to buy a         separate ONU for your internet connection.

   •Superfast Dual-Band Speed: Enjoy up to 867 Mbps on the 5GHz band and 300 Mbps on the 2.4GHz band—perfect for lag-free gaming and seamless 4K video streaming.

   •Gigabit LAN Ports: Equipped with 4 Gigabit (GE) ports to deliver maximum wired internet speeds directly to your PC, Smart TV, or gaming console.

  •Strong Coverage: High-gain external antennas ensure a stable, uninterrupted, and powerful Wi-Fi signal throughout your home or office.

   •Maximum Compatibility: Automatically adapts and works seamlessly with all mainstream OLTs, including Huawei, ZTE, BDCOM, and V-SOL.
